How Complex is my Code?

What is Complexity? #

“Complexity of an algorithm is the amount of resources required to run it.”

(Wikipedia Definition)

Given this definition, there are so many definitions of Resources one can think of in terms of running code: the memory needed, the time needed, the mental resources to understand the code, the mental resources required to understand the problem, the context knowledge to understand how the code is solving it — all are reasonable interpretations of resources required to run code.

Computational Complexity #

I had multiple lectures in university that pointed towards the question of “how complex is this code?”. Starting with formal definitions of a problem, how programs can be modelled to understand their resources, to the actual computation of how resource usage (time or memory) grows as input size grows. Looking at these topics as a software developer and no longer a computer science student, I only sometimes discover glimpses of those questions at work.

For example, the computational time complexity of this code would be O(n²), with n the length of the list. In the worst case of a reverse-sorted list, this would perform, for each of the n elements of the list, n comparisons to the other list elements and then n swaps.

def insertion_sort(array: list[int]) -> list[int]:
    for index in range(1, len(array)):
        current = array[index]
        predecessor = index - 1
        while predecessor >= 0 and array[predecessor] > current:
            array[predecessor + 1] = array[predecessor]
            predecessor -= 1
        array[predecessor + 1] = current
    return array

A different implementation solving the same problem can vary in computational complexity. Sorting by creating a map of all possible values in the list up front, for example, would be faster with O(n). This implementation would first need O(n) for finding the max, then O(n) for looping through the values and placing them in the count array, and again O(k) for the construction of the result, where k is the highest value.

def counting_sort(array: list[int]) -> list[int]:
    count = [0] * (max(array) + 1)
    for current in array:
        count[current] += 1

    result = []
    for current, frequency in enumerate(count):
        result.extend([current] * frequency)

    return result

Analysing the number of operations that an algorithm might perform gave a hint that the second algorithm could be more performant. But in this case, it raises the question: at what cost? The first function was easy to understand, as it mirrors how many people intuitively sort — just start at one and place each next element in its spot in the sorted part of the array. The second is harder to understand: it creates a list that depends on the maximum value, which might be unnecessarily large for a list like [4500, 9000, 7200], and it is constrained because negative numbers cannot be sorted.

For a software developer, simply choosing an algorithm with a lower computational complexity might introduce a different form of complexity, costing not computing-time resources, but more time to understand the function, time to document and communicate its limitations, and time to fix issues if somebody used it with the wrong sets of numbers.

Domain Code Complexity #

I define my job as writing business / domain code. For me, computing time and computer memory are cheap resources compared to human thinking time and human memory. 50 initialised variables are a problem, not because the virtual AWS machines I run my code on struggle, but because the developer who needs to spend hours every time they read the function to understand the reason behind the 50 variables.

Therefore, I ask, how can I measure how complex my code is for a human?

Sure, lines of code is a simplification of complexity — everyone knows that many lines can be frustrating, but even two lines can hide enough complexity to keep one occupied for hours.

Cyclomatic Complexity #

Cyclomatic Complexity counts the number of linearly independent paths through code — that is, the number of if, for, while, and case branches (plus 1 for the method declaration).

There is solid research showing a correlation between high Cyclomatic Complexity and defect density. A heatmap over the repository can also identify why modules have high complexity, which can be great for refactoring prioritisation. A function with high complexity is most likely doing more than it should, and might benefit from delegating some of its responsibility. It also gives a nice basis for estimating how many tests are needed to cover a function, in relation to its number of execution paths.

The Cyclomatic Complexity of both insertion_sort and counting_sort is 3 - both have two loops + 1. For this example, both implementations appear to have the same complexity. It doesn’t capture semantic complexity, background knowledge, or unintuitive limitations.

Halstead Complexity #

Halstead Complexity follows the idea that mental effort scales with the number of distinct concepts you need to hold in working memory. Halstead argued that to understand a program, you need to learn each distinct operator, and on average you need to see an operator twice to learn it (once to encounter it, once to confirm it). A program is harder to understand the more distinct operands (array, current, …) it has that are rarely reused, and the more distinct operators (for, +, =, …) it has.

HALSTEAD_LEARNING_CONSTANT = 2
# The variety of operators and operands that make a function complex
halstead_difficulty = (distinct_operator_count / HALSTEAD_LEARNING_CONSTANT) * (total_operands / distinct_operand_count)

# The bits needed to encode the function
halstead_volume = (total_operators + total_operands) * log_2(distinct_operator_count + distinct_operand_count)

# Estimated mental effort
halstead_cognitive_complexity = halstead_difficulty * halstead_volume

This gives the result that counting_sort is less difficult and, although it has a higher volume, is cognitively less complex.

# insertion_sort
halstead_difficulty = (12 / 2) * (24 / 6) = 6 * 4 = 24
halstead_volume = 46 × log₂(18) = 46 × 4.17 = 192
# counting_sort
halstead_difficulty = (13 / 2) × (27 / 10) = 6.5 × 2.7 = 17.6
halstead_volume = 51 × log₂(23) = 51 × 4.52 = 230

While this is a very cool measurement of mental complexity, Halstead measures token reuse density, not conceptual difficulty. The longer I think about this question, the more I think the answer lies not in computer science, but in linguistics.

Linguistic Complexity #

Psycholinguistics studies how humans process language and has identified some reliable predictors of reading difficulty:

• Familiarity known words are processed faster than unknown ones. The equivalent in code is whether a pattern (like sorting an array in an intuitive way) is immediately recognised or requires decoding. Skill level also matters here, as programming patterns or even new concepts like match statements can be unfamiliar to individuals.
• Working memory load sentences (and functions) with many nested clauses are harder because you have to hold unresolved structure in mind.
• Coherence text is easier when each sentence connects clearly to the previous one. In code, this can relate to the distance between a variable declaration and its usage, but also to whether the goal of a function reads as a clear thought or a mess of statements.

Linguistic Complexity Measurements #

Even a superficial look into linguistic complexity compared to programming complexity reveals shared properties. Historically, both seem to have influenced each other. Natural language inspiring formal languages and formal grammar did form the basis for compilers, and vice versa, programming complexities like Cyclomatic Complexity inspired parse trees in linguistics; to just name one of many examples.

Subordination index Count of subordinate clauses, each of which adds a new “branch” to parse. “If it rains, I will stay inside” has a Subordination index of 2 because of the subordinate clause “if it rains” ( conditional). Mapping this to computer science, it feels close to Cyclomatic Complexity, as it judges not the length of the sentence, but the addition of a new branch of information.

Mean Dependency Distance (MDD) Average syntactic distance between words and their governors (heads) across all dependency pairs in a sentence or text. In dependency grammar, every word in a sentence might depend on another word called its governor. The governor is the word that the dependent belongs to or modifies. In “If it rains, I will stay inside”, “if” and “it” depend on “rains”, and everything else is dependent on “stay”, which results in MDD = (2+1+3+1+1+1) / 6 = 9/6 = 1.5. This reminds me of variable scope distance; the number of lines between a variable’s declaration and its use. As in sentences, a function is easier to read when variables are defined close to where they are used, compared to setting up ten variables upfront and then using them over the next 20 lines of code.

Dependency Locality Theory (DLT) Storage cost of reading a sentence. The core idea is that the processing cost of reading a sentence comes from holding incomplete dependencies open in working memory — specifically, counting the number of new discourse referents (roughly: nouns/verbs) you pass over while waiting for a dependency to close. “If it rains, I will stay inside” has two resolving words (“rains”, “stay”), so “I” and “will” need to be held in memory until one reads “stay” and resolves the current context, while “inside” only attaches to “stay”. From a computer science perspective, the “closing” of a context maps nicely to the liveness of a variable: how many lines or statements does a compiler need to track a variable until it goes out of scope? For humans, I find it more intuitive to compare it to a function’s call graph fan-out — how many unresolved function calls must I hold in mind while reading a function? A function that calls n different functions increases complexity for the reader, who may need to understand each of those functions, and also introduces coupling complexity, as this function requires knowledge about the broader system.

Type-token ratio the count of unique words divided by the total number of words, similar to Halstead vocabulary, since Halstead was inspired by linguistic ideas when developing his complexity metrics.

Entropy how unexpected is a given word or sound given what came before? A cognitive claim states that reading and understanding time scales with surprisal. It comes with the concept of perplexity — the number of equally likely alternatives to continue at a given position in text or code. Empirically, this is measured via the reading time of humans or using LLMs as probability estimators. Studies applying this to code have a hard time comparing the metric across both fields — programmers do not read in a linear way, but jump from function to caller to definition to parameter to function.

Natural Language Description Complexity #

Beyond measurable syntax and structure, the conceptual complexity of a text or function is very hard to determine. One could argue a function is as complex as the natural language description of what it does.

This conflates the map with the territory. Measuring the description of an abstraction does not necessarily reflect the cognitive load of the code for the developer working with it. A famous example of something developers might be able to explain easily but still cannot easily comprehend in code is the concept of a Monad in Haskell.

For which audience is the algorithm described? In what detail are business decisions explained? By this measure, is the description of an algorithm for the formula E = mc² as simple as “Energy equals mass times the speed of light squared”, or does it require a more complex natural language description? What amount of domain knowledge is expected of the reading developer? If extensive knowledge about a topic can be assumed, even “low-quality” code can have low perceived complexity. I once had the chance to read through the code of a geophysics academic where one-letter variables and complex, undescribed functions were sufficient, assuming the reader was familiar with the required geophysics formulas and definitions (which are inherently defined by single-character constants).

The cognitive complexity of a function can only be determined by the reader, and only caring about the reader can enable the writer to improve the learning experience.

Working with Complexity Metrics #

I experimented with complexity metrics on code in this Jupyter Notebook. Feel free to use the code for your own projects, but mind that this was my first time working with polars and dataframes.

There are a few questions you can ask when interpreting the metrics:

Aggregation is the complexity of a module its…

• sum of complexity of all functions, to get a sense of the overall complexity of a project? After all, a larger project is more complex than a small one.
• average complexity of all functions, to get a sense of the overall health of a project, ignoring outliers?
• maximum complexity of all functions, to identify the outliers that are in most need of simplification?

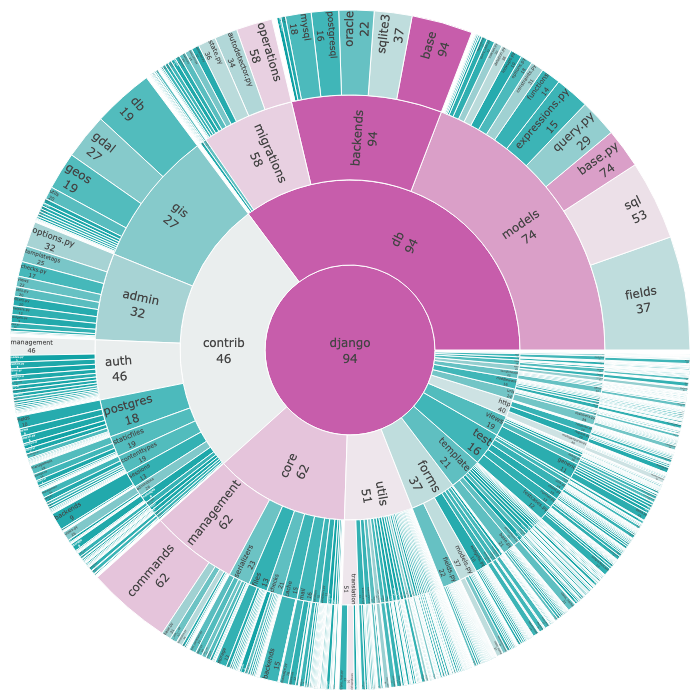

An example of complexity aggregated by maximum of the django framework codebase:

Combining Metrics maybe complexity itself is not the issue, but rather:

• Coupling is a complex file easy to refactor because it is never imported and safe to change? Or is it imported very often and must therefore be stable and bug-free?
• Churn is a complex file changed regularly, introducing bugs, such that simplifying it would provide a great gain? Or does it not matter because it is never touched? Or is it so complex that nobody dares touch it?

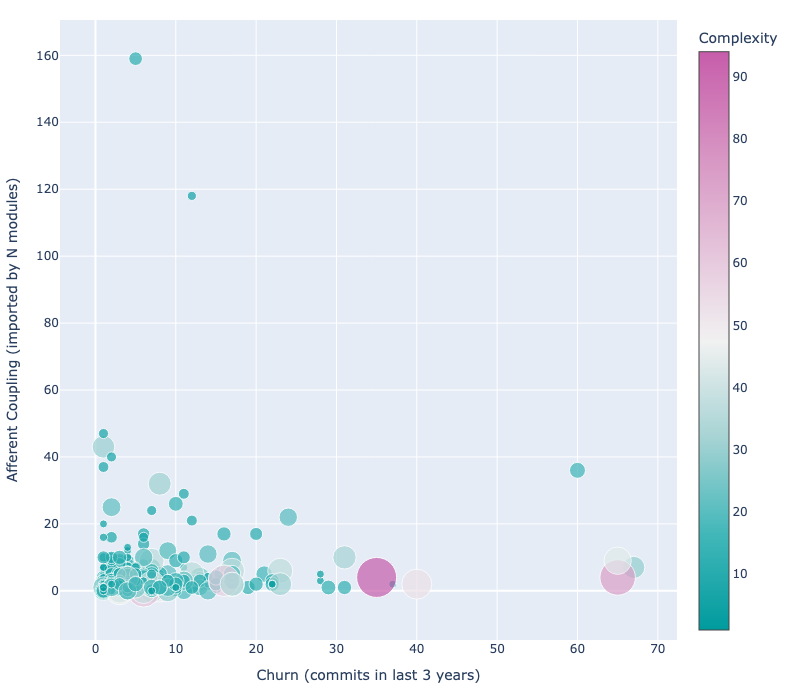

An example of complexity combined with churn and afferent coupling of the django framework codebase:

Like all graphs (as discussed in this post about Communication Patterns), a graph should tell a story. Looking at metrics is interesting, but it depends heavily on your project whether, and which, complexity is actually an issue. What such graphs can reliably do is provide a visualisation for non-technical stakeholders and serve as a basis for conversations about refactoring needs or technical debt, enable other to identify a problematic area of the codebase, or to demonstrate the success of a refactor with a before-and-after analysis.

Complexity metrics, like all other metrics, are a tool. If developers are forced to improve them, it won’t help the codebase. But if they are used to drive data-based decision-making, and to convince managers with clear visualisations that refactoring has a measurable impact, they can be a great help.

Happy Coding :)
